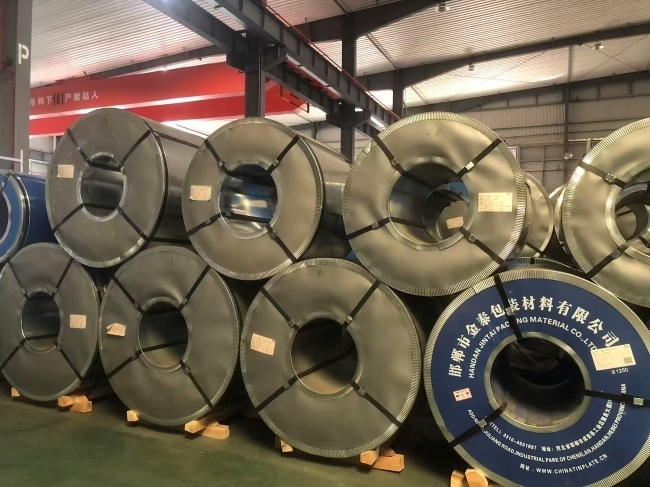

Name: Premium Electrolytic Tin Plate Sheets & Coils for Food Cans, Aerosol Containers, and Paint Packaging
Brand: SHANGHAI QUANYE METAL PACKAGING MATERIALS CO.,LTD
SKU: DR8 Placca di latta
Price: 499.01 USD
Availability: InStock

Casa > prodotti > Bobina della latta >

Premium Electrolytic Tin Plate Sheets & Coils for Food Cans, Aerosol Containers, and Paint Packaging

Luogo di origine:

Cina

Marca:

QuanJiang

Certificazione:

MILL CERTIFICATE

Numero di modello:

DR8 Placca di latta

Contattaci

Richiedi un preventivo

Premium Electrolytic Tin Plate Sheets & Coils for Food Cans, Aerosol Containers, and Paint Packaging

Dettagli del prodotto

Larghezza::

600~1050mm

Durezza::

T-3 T-4 T-5 DR-7 DR-8 DR-9 DR-10 DEL T2

Tipo::

Bobina dello strato della latta o della latta

Spessore::

0.15-0.5mm

Lunghezza:

600mm-1200mm o bobine

Rivestimento di latta::

1.1/1.1,2.0/2.0,2.2/2.2,2.8/2.8,5.6/5.6, 8.4/8.4, 11.2/11.2 g/m2 ecc. o personalizzato

Superficie::

Luminoso, pietra, argento, opaco

Caratteristiche::

resistenza alla ruggine, resistente agli'acidi, resistenza dell'alcali, paintablity, resistenza ecc

Applicazione::

Tincan alimentare, lattina ad olio, lattina di aerosol, lattina di vernice, lattina

Pacchetto::

film plastico sottile + pallet inossidabili di paper+carton+wooden

Termini di trasporto & di pagamento

Quantità di ordine minimo

25tons

Prezzo

Negotiated

Imballaggi particolari

film plastico sottile + pallet inossidabili di paper+carton+wooden

Tempi di consegna

Negoziato

Termini di pagamento

T/t

Capacità di alimentazione

50000 mesi della TA

PRODOTTI RELATIVI

Video

Custom Printed Electrolytic Tin Plate Coils for Tomato & Harissa Can Packaging Solutions

Ottenga il migliore prezzo

Video

Premium Electrolytic Tin Plate & Tin Free Steel (TFS) Sheets for Food Can Packaging Solutions

Ottenga il migliore prezzo

Video

Lamiere di banda stagnata TFS stampate avanzate per imballaggi chimici – Resistenza superiore alla corrosione e stampa personalizzata

Ottenga il migliore prezzo

Video

Bobine di lamiera stagnata elettrolitica ecologica premium per soluzioni di imballaggio alimentare sostenibili

Ottenga il migliore prezzo

Contattaci

+8618321408860-021-56922400

quanye@spte.cn

+86-021-56922411

Contatto ora

Descrizione di prodotto

Premium Electrolytic Tin Plate Sheets & Coils for Food Cans, Aerosol Containers, and Paint Packaging

Electrolytic Tin Plate (ETP) represents the pinnacle of packaging material technology, combining the strength of cold-rolled steel with the exceptional protective qualities of commercial pure tin. Our ETP sheets and coils feature precision electrolytic coating that provides superior corrosion resistance, making them ideal for demanding applications including food containers, aerosol cans, paint packaging, and industrial containers. Available in various tempers (DR-7, DR-8, DR-9) and surface finishes, these materials undergo rigorous quality control to meet international standards including ASTM A623, EN 10203, and JIS G3303. The material's excellent solderability and weldability enable efficient manufacturing processes while maintaining structural integrity. With customizable thickness, width, and coating weights, our ETP products offer versatile solutions for diverse packaging requirements across multiple industries.

Features & Advantages:

Superior corrosion resistance against acidic and alkaline contents
Excellent solderability and weldability for manufacturing efficiency
Multiple temper grades (T-2 to DR-10) for various strength requirements
Customizable tin coating weights from 1.1/1.1 to 11.2/11.2 g/m²
Beautiful metallic appearance with various surface finishes
Excellent formability and deep drawing capabilities
Food-safe material compliant with international standards

Applications:

Food cans and containers (vegetables, fruits, seafood)
Aerosol containers and spray cans
Paint and chemical packaging
Oil containers and industrial pails
Electronic components and battery casings

Technical Parameters:

Property	Specifications
Material Standard	ASTM A623, EN 10203, GB2520, JIS G3303
Base Material	MR, SPCC
Thickness	0.15-0.5mm (±0.01mm tolerance)
Width	600-1050mm (customizable)
Temper Grades	T1-T5, DR7-DR9, TH550-TH660
Tin Coating	1.1/1.1 to 11.2/11.2 g/m²
Surface Finish	Bright, Stone, Silver, Matte
Coil Dimensions	ID 420/508/610mm, OD 1000-1250mm

Workshop Show

Premium Electrolytic Tin Plate Sheets & Coils for Food Cans, Aerosol Containers, and Paint Packaging 2

Premium Electrolytic Tin Plate Sheets & Coils for Food Cans, Aerosol Containers, and Paint Packaging 3

OUR COMPANY

Premium Electrolytic Tin Plate Sheets & Coils for Food Cans, Aerosol Containers, and Paint Packaging 4

Production Process

Premium Electrolytic Tin Plate Sheets & Coils for Food Cans, Aerosol Containers, and Paint Packaging 5

APPLICATION

Premium Electrolytic Tin Plate Sheets & Coils for Food Cans, Aerosol Containers, and Paint Packaging 6

CERTIFICATE

Premium Electrolytic Tin Plate Sheets & Coils for Food Cans, Aerosol Containers, and Paint Packaging 8

FAQ:

What is the difference between ETP and TFS?
ETP features tin coating for superior solderability, while TFS uses chromium coating for enhanced paint adhesion.
Can you provide customized coating weights?
Yes, we offer customizable tin coating from 1.1/1.1 to 11.2/11.2 g/m² based on application requirements.
What certifications do your products have?
Our products comply with ISO 9001, SGS, and various international standards including ASTM and EN.
Do you offer sample availability?
Yes, we provide free samples with customers responsible for shipping costs.
What is the minimum order quantity?
MOQ is 25 tons with flexible options for larger orders.
