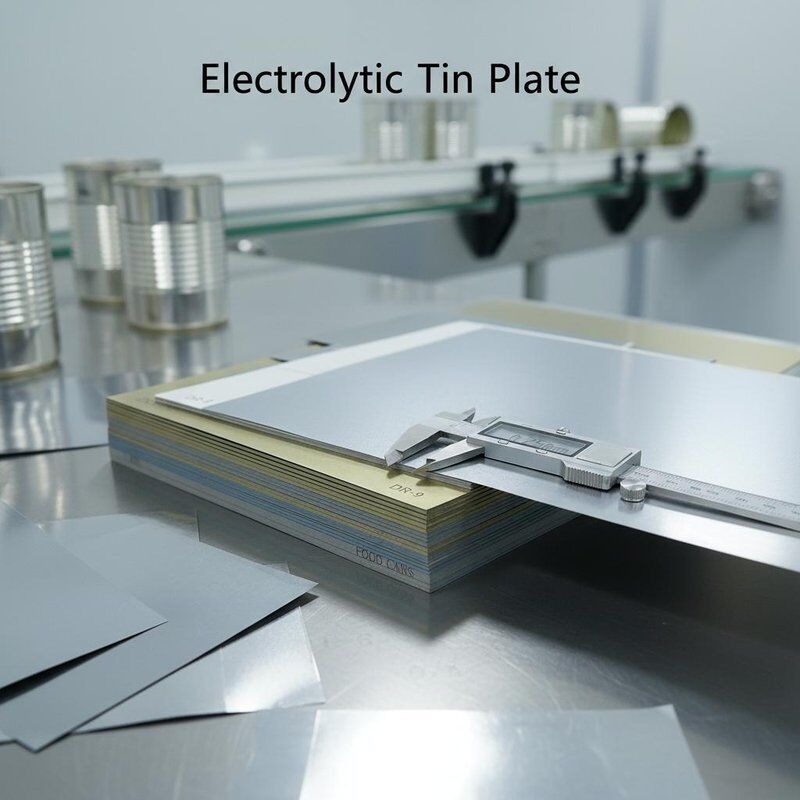

Electrolytic Tin Plate ETP Sheet with Corrosion Resistance DR-8 DR-9 and 0.15-0.5mm Thickness for Food Cans

Electrolytic Tin Plate ETP Sheet with Corrosion Resistance DR-8 DR-9 and 0.15-0.5mm Thickness for Food Cans

Luogo di origine:

Cina

Marca:

QuanJiang

Certificazione:

MILL CERTIFICATE

Numero di modello:

DR8 Placca di latta

Contattaci

Richiedi un preventivo
Electrolytic Tin Plate ETP Sheet with Corrosion Resistance DR-8 DR-9 and 0.15-0.5mm Thickness for Food Cans
Electrolytic Tin Plate ETP Sheet with Corrosion Resistance DR-8 DR-9 and 0.15-0.5mm Thickness for Food Cans Electrolytic Tin Plate ETP Sheet with Corrosion Resistance DR-8 DR-9 and 0.15-0.5mm Thickness for Food Cans
Dettagli del prodotto
Larghezza:
600~1050mm
Durezza:
T-3 T-4 T-5 DR-7 DR-8 DR-9 DR-10 DEL T2
Spessore:
0.15-0.5mm
Lunghezza:
600mm-1200mm o bobine
Rivestimento in stagno:
1,1/1,1,2,0/2,0,2,2/2,2,2,8/2,8,5,6/5,6,8,4/8,4,11,2/11,2 g/m2
Finitura superficiale:
Luminoso, pietra, d'argento, opaca
Termini di trasporto & di pagamento
Quantità di ordine minimo
25 tonnellate
Prezzo
Negotiated
Imballaggi particolari
film plastico sottile + pallet inossidabili di paper+carton+wooden
Tempi di consegna
Negoziato
Termini di pagamento
T/T
Capacità di alimentazione
50000 mesi della TA
PRODOTTI RELATIVI
Buon prezzo Corrosion Resistant Weldable 0.18mm Thick Tin Sheets and Tinplate for Food Cans in linea Video

Corrosion Resistant Weldable 0.18mm Thick Tin Sheets and Tinplate for Food Cans

Ottenga il migliore prezzo
Buon prezzo Electrolytic Tin Plate ETP Sheet with Corrosion Resistance DR-8 DR-9 and 0.15-0.5mm Thickness for Food Cans in linea Video

Electrolytic Tin Plate ETP Sheet with Corrosion Resistance DR-8 DR-9 and 0.15-0.5mm Thickness for Food Cans

Ottenga il migliore prezzo
Buon prezzo Corrosion and Rust Resistant Tinplate Coils with Customizable Thickness for Food and Beverage Cans in linea Video

Corrosion and Rust Resistant Tinplate Coils with Customizable Thickness for Food and Beverage Cans

Ottenga il migliore prezzo
Buon prezzo Food Grade Tinplate Sheet with Corrosion Resistant and Anti Rust Properties for Safe Food Storage in linea Video

Food Grade Tinplate Sheet with Corrosion Resistant and Anti Rust Properties for Safe Food Storage

Ottenga il migliore prezzo
Contattaci
+8618267212962-021-56922400
quanye@spte.cn
+86-021-56922411
Contatto ora
Descrizione di prodotto
ETP Sheet Electrolytic Tin Plate for Aerosol Cans, Paint Cans, Food Cans
Product Overview

Tinplate is a thin steel sheet coated with tin, featuring an extremely beautiful metallic luster along with excellent corrosion resistance, solderability, and weldability. Tinplate is used for manufacturing various types of containers including food cans, beverage cans, 18-liter cans, and artistic cans. Beyond containers, tinplate is increasingly used for electrical machinery parts and numerous other industrial applications.

Key Features
Excellent Corrosion Resistance By selecting proper coating weight, appropriate corrosion resistance is achieved against container contents.
Excellent Paintability & Printability Printing is beautifully finished using various lacquers and inks for superior visual appeal.
Excellent Solderability & Weldability Widely used for making various types of cans by soldering or welding processes.
Excellent Formability & Strength By selecting proper temper grade, appropriate formability is obtained for various applications while maintaining required strength after forming.
Beautiful Appearance Characterized by beautiful metallic luster with various surface roughness options by selecting substrate steel sheet surface finish.
Electrolytic Tin Plate ETP Sheet with Corrosion Resistance DR-8 DR-9 and 0.15-0.5mm Thickness for Food Cans 0 Electrolytic Tin Plate ETP Sheet with Corrosion Resistance DR-8 DR-9 and 0.15-0.5mm Thickness for Food Cans 1
Product Specifications
Parameter Specification
Product Tinplate Sheet, Tinplate Coil
Standard ASTM A623, EN 10203, GB2520-2000, JISG3303-2002, DINEN10202-2001
Material MR SPCC
Thickness 0.15-0.5mm (tolerance -/+0.01mm)
Width 700-1150mm (Tolerance: 0-3mm)
Cutting Length 700-1150mm (Tolerance: 0-3mm) or as coils
Annealing BA & CA
Temper T1 T2 T3 T4 T5 DR7 DR8 DR9 TH550 TH580 TH620 TH660
Tin Coating 1.1/1.1 2.0/2.0 2.8/2.8 2.8/5.6 5.6/5.6 8.4/8.4 11.2/11.2 g/㎡
Surface Finish Bright, Stone, Silver, Matt
Coil Diameter ID 420/508/610mm, OD from 1,000 to 1,250mm
Coil Weight 3-10 MT
Package Seaworthy standard with wooden pallet, corner protected by sheet or coils according to customer requirements
Applications Metal packaging for paint, chemical cans, aerosol cans, food cans; battery, electric cable, and other industries
Workshop Facilities
Electrolytic Tin Plate ETP Sheet with Corrosion Resistance DR-8 DR-9 and 0.15-0.5mm Thickness for Food Cans 2 Electrolytic Tin Plate ETP Sheet with Corrosion Resistance DR-8 DR-9 and 0.15-0.5mm Thickness for Food Cans 3
Company Profile
Electrolytic Tin Plate ETP Sheet with Corrosion Resistance DR-8 DR-9 and 0.15-0.5mm Thickness for Food Cans 4

Shanghai Quanjiang Industrial Co., Ltd is a large-scale enterprise integrating manufacturing and international export. Established in 2001 with an area of more than 40,000 square meters located in Shanghai, China. We feature advanced production equipment including pushing machines, presses, large heat treatment furnaces, chamfering machines, sawing machines, large sandblasting machines, and various testing instruments.

Production Process
Electrolytic Tin Plate ETP Sheet with Corrosion Resistance DR-8 DR-9 and 0.15-0.5mm Thickness for Food Cans 5
Application Examples
Electrolytic Tin Plate ETP Sheet with Corrosion Resistance DR-8 DR-9 and 0.15-0.5mm Thickness for Food Cans 6 Electrolytic Tin Plate ETP Sheet with Corrosion Resistance DR-8 DR-9 and 0.15-0.5mm Thickness for Food Cans 7
Quality Certifications
Electrolytic Tin Plate ETP Sheet with Corrosion Resistance DR-8 DR-9 and 0.15-0.5mm Thickness for Food Cans 8
Frequently Asked Questions
Can you send samples?
Of course, we can send samples to all parts of the world. Our samples are free, but customers need to bear the courier costs.
What product information do I need to provide?
You need to provide the grade, width, thickness, coating, and the number of tons you need to purchase.
What are the shipping ports?
Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports. You can choose other ports according to your needs.
About product prices?
Prices vary from period to period due to cyclical changes in the price of raw materials.
What are the certifications for your products?
We have ISO 9001, SGS, EWC and other certifications.
How long does your delivery time take?
In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely large or special circumstances occur.
Can I visit your factory?
Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.
Does the product have quality inspection before loading?
Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.
How are the products packaged?
The inner layer has waterproof paper, outer layer with iron packaging, and fixed with fumigation wooden pallets. This effectively protects products from corrosion during ocean transportation.
