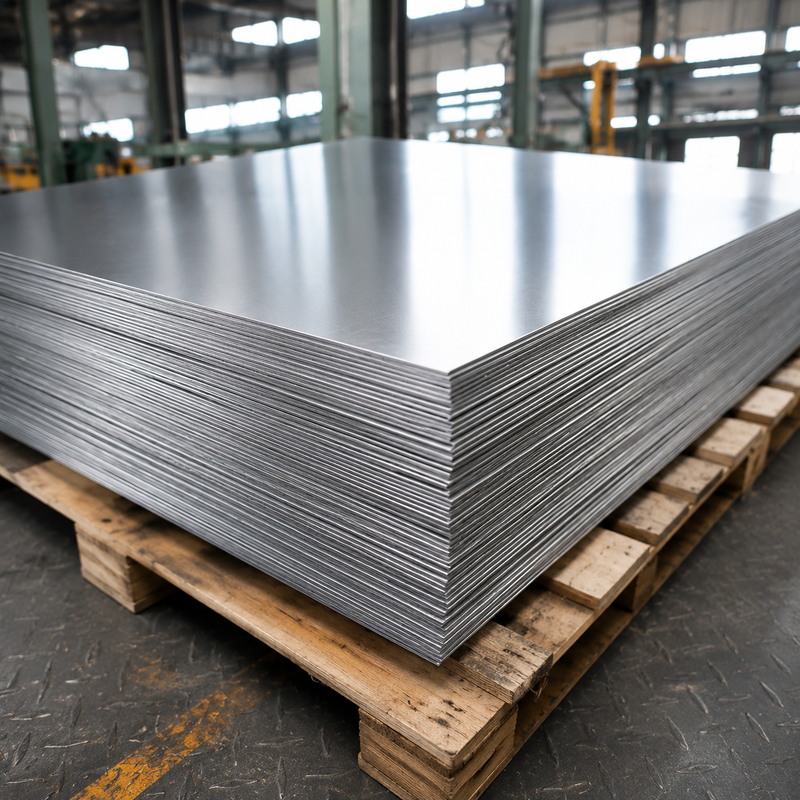

Industrial-Grade Tinplate Coil & Silver Tinplate Sheets (600mm To 1250mm)

Our premium Electrolytic Tinplate Coil (ETP) and Silver Tinplate Sheets represent the benchmark for high-performance steel substrates in the modern industrial packaging and container manufacturing sectors. Fabricated utilizing advanced cold-rolling processes combined with a continuous electrolytic tinning line, this material features a wider dimensional envelope ranging from 600mm to 1250mm in width and flexible single coil weights from 3 to 10 metric tons.

The "Silver" surface finish offers a distinct, high-purity, and finely textured metallic luster. This specific aesthetics and surface roughness are engineered to optimize coating adhesion for protective industrial lacquers and high-resolution lithographic printing. Composed of an ultra-reliable low-carbon steel core coated evenly with high-purity tin, our tinplate coils provide an impenetrable barrier against environmental degradation, oxidation, and aggressive chemical contents. This makes them the definitive material for chemical containers, oil drums, aerosol cans, paint pails, and robust food packaging components.

To guarantee absolute compliance with global industrial packaging standards (including ASTM A623, EN 10202, and JIS G3303), we maintain microscopic control over our steel chemistry and electro-tinning lines. Below are the precise technical specifications for our 3-10 ton tinplate coils:

• Superior Corrosion Resistance for Industrial Chemicals: The robust tin coating acts as a reliable sacrificial anode and physical shield, preventing rust and chemically resisting aggressive industrial formulations, solvent-based paints, oils, and automotive fluids.

• Exceptional Adhesion for Coating & Printing: The specialized Silver surface finish increases the surface area microscopically, giving it a distinct advantage. It provides excellent wet-out and eliminates the risk of lacquers peeling or bubbling during high-temperature baking cycles.

• Extended Width for Maximum Layout Yield: Offering a broad width range up to 1250mm enables your engineers to maximize multi-blank slitting patterns. This significantly cuts down on edge-scrap and maximizes material economy during high-volume can stamping.

• Flawless Mechanical Weldability: Designed to work perfectly with high-speed automated side-seam welding equipment, our tinplate coil delivers clean, solid, and leak-proof seams that comfortably withstand internal pressure testing.

One size does not fit all in the industrial packaging industry. We have built our reputation on providing extensive, client-specific modifications:

1. Custom Slitting & Shearing: Do you require precision-cut sheets instead of coils? We utilize ultra-precise flying shears to convert our 600mm–1250mm tinplate coils into exact sheet lengths with tight diagonal tolerances (within ±0.5mm), ready to feed directly into your printing lines.

2. Differential Tin Coating Weights: For cost-sensitive markets in emerging economies, we offer customizable differential coatings. We can supply a heavy tin layer on the internal side (e.g., 5.6g/m²) to safely handle corrosive liquids, and a lighter coating on the exterior side (e.g., 1.1g/m² or 2.8g/m²) to dramatically lower your raw material expenses.

3. Targeted Temper Tuning: We fine-tune the mechanical properties to your machinery specifications. Whether you require soft, ductile tempers like T1 and T2 for deep drawing, or stiff, lightweight Double-Reduced (DR) tempers for ultra-thin can bodies, we calibrate the yield strength exactly to your requirements.

Industrial packaging firms across the Middle East, Southeast Asia, and Africa choose us as their long-term supply partner due to three core structural commitments:

• Absolute Batch-to-Batch Consistency: Every export shipment is accompanied by a certified Mill Test Certificate (MTC) detailing exact chemical composition, tensile metrics, and precise tin coating weights, ensuring complete traceability.

• Proactive Global Logistics Support: We maintain strong partnerships with tier-one global shipping lines. This allows us to secure reliable container allocations and competitive freight rates to major hub ports, including Lagos, Mombasa, Jakarta, Manila, Jebel Ali, and Jeddah.

• On-Demand Technical Consultation: Our engineering team provides proactive support to optimize your material parameters, assisting you in selecting the exact thickness, temper, and coating weight required to lower your production line's scrap rate.

A: A Bright finish features a melted, smooth, reflective surface achieved by reflowing the tin coating over a polished base steel sheet. A Silver finish is produced by applying a specific micro-matte topography to the base steel before electro-tinning, creating a distinct, fine-textured metallic appearance. This textured finish provides much better mechanical adhesion for heavy industrial lacquers and protective epoxy coatings.

A: We use premium, heavy-duty seaworthy export packaging. Coils are tightly wrapped in protective VCI (Volatile Corrosion Inhibitor) paper, surrounded by a durable corrugated inner layer, and encased in an external galvanized steel structural shroud. The entire assembly is bound with multiple circumferential and radial high-tensile steel straps and anchored securely onto heavy wooden skids with rich container desiccant packs.

A: For the body sections of larger industrial chemical pails and drums, T3, T4, or high-strength Double-Reduced tempers are typically chosen to prevent buckling under stacked loads. For aerosol can manufacturing, the body typically uses T3 or T4, while the top domes and bottom end closures require softer, highly ductile tempers like T1 or T2 to withstand deep-drawing operations without fracturing.

A: Our production lines are optimized for widths between 600mm and 1250mm, which covers the vast majority of industrial, food, and aerosol packaging lines worldwide. Within this range, we can slit the coils down to your exact millimeter requirements to maximize your layout efficiency.

A: Our standard Minimum Order Quantity is 30 metric tons (equivalent to two 20-foot shipping containers). To support international buyers, we offer flexible payment structures, including a 30% T/T deposit with the 70% balance due against the copy of the Bill of Lading, or an Irrevocable Letter of Credit (L/C) at sight from a reputable international bank.
